SOLAR STREET / HIGHWAY LIGHTS
QLUX iSurian Solar Integrated LED Streetlight comes with a different size of solar panel and wattage to suit user application. The sleek and modern design of the solar integrated Streetlight make it looks different and outstanding from the others in the market.

Solar Street/Highway Lights

Category:
Request quote

Related products

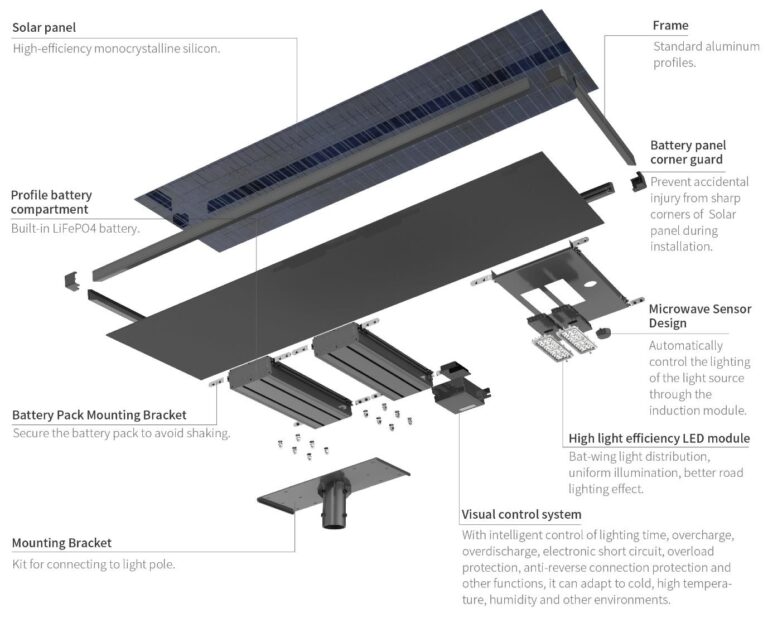

REPLACEABLE AND MAINTAINANCE FRIENDLY DESIGN:
Solar Panel:
QLUX iSurian Solar Integrated LED Streetlight come with the dual size monocrystalline of solar PV Module, which is MX Model 130W, and LX Model 260W. The solar PV module MX 130W is to cater for the lower wattage Solar Integrated LED model that is 40W, 50W etc while the LX Model 260W Solar PV is to be used for the higher wattage Solar Integrated LED Streetlight such as 80W, 90W,120W and 150W. The monocrystalline solar PV module has been tested and the panel efficiency is >15% with the lifespans up to 25 years.
Battery System:
iSurian Solar Integrated LED Streetlight also emphasized on the Product reliability that goes hand in hand with superior thermal management and heat dissipation that has been used in the iSurian battery storage system. The lithium-ion Phosphate (LiP04) battery storage system is equipped with own die-cast aluminium casing to ensure that the heat dissipate faster and prolong the lifespan on battery enabled QLUX iSurian to confidently provide warranty service effectively up to 5 years warranty for the battery and the whole solar system.
TESTED AND CERTIFIED:

QLUX iSurian Solar Integrated LED Streetlight component has been tested by SIRIM and has undergo a series of testing for its whole system. The solar Streetlight managed to fullfilled the safety standards IEC 60598 which indicates that the product is safe to be used and does not the user of the road especially.

The battery system also has undergone the rechargeable deep cycle performance test with the retention of 96% to 100% passed after being tested with 500 cycle. Another contributing factor of the high success rate is also due to its unique battery heatsink design that enable it to effectively extend the lifespan of the battery system.

QLUX iSurian Solar Integrated LED Streetlight also has also followed the standard requirements provided by JKR which enabled QLUX iSurian to be the one of the first Solar Integrated LED Streetlight to be JKR EMAL Listed.

Streetlight Table
Bil
Perkara/ Komponen
Criteria
Standard/ Keperluan
1
Luminaire
Safety
IEC 60598-2-3 IEC 60598-1 IEC 62471
2
Luminaire
Photometry
IES LM-79
3
Solar PV module
Design
IEC 61215-2
4
Solar Charge Controller
Safety
IEC 62109-1
5
Rechargeable deep cycle battery
Safety
IEC 62133-2 Or IEC 62619
6
Rechargeable deep cycle battery
Performance (500 cycles)
IEC 62620
Easy Peasy as ABC:

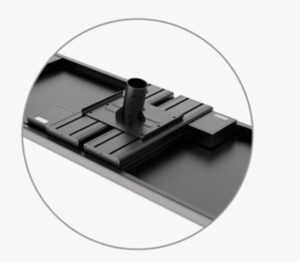

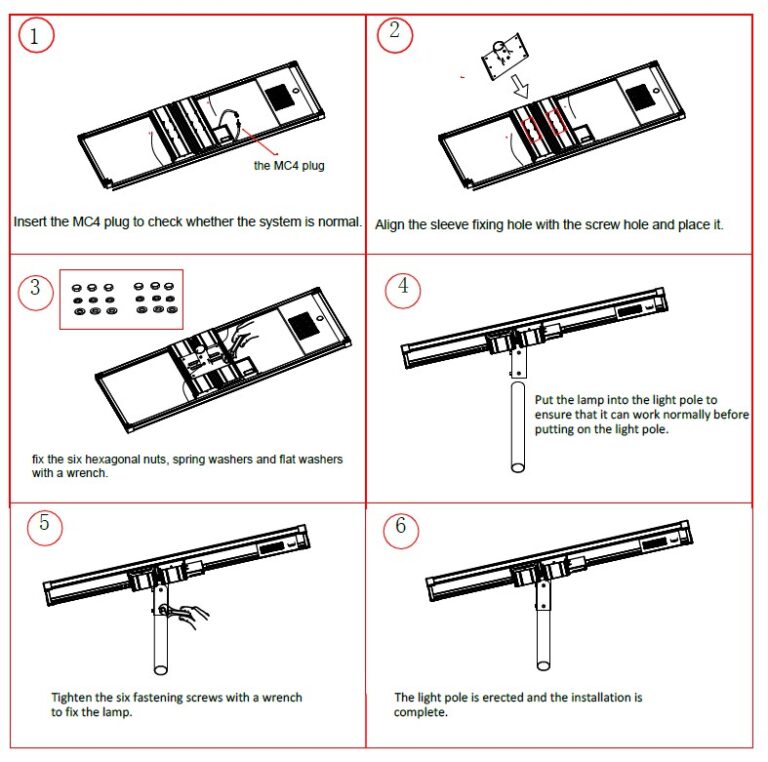

The Plug and play design of the iSurian Solar Integrated LED Streelight make it installation process to be very straight forward and can be done within a shorter period. This enabled the contractor to enjoy a time and cost friendly solution with iSurian Solar Integrated LED Streetlight solution. It’s also comes with it own customised post top bracket with 15 Degree angle which enhances the sunlight peneratration and absorbtion into the PV module.

Model Available
MX Series
  • iSurianMX40
  • iSurianMX50
  • iSurianMX60
  • iSurianMX80
LX Series
  • iSurianLX80
  • iSurianLX90
  • iSurianLX100
  • iSurianLX120
  • iSurianQLX120
  • iSurianQLX150
